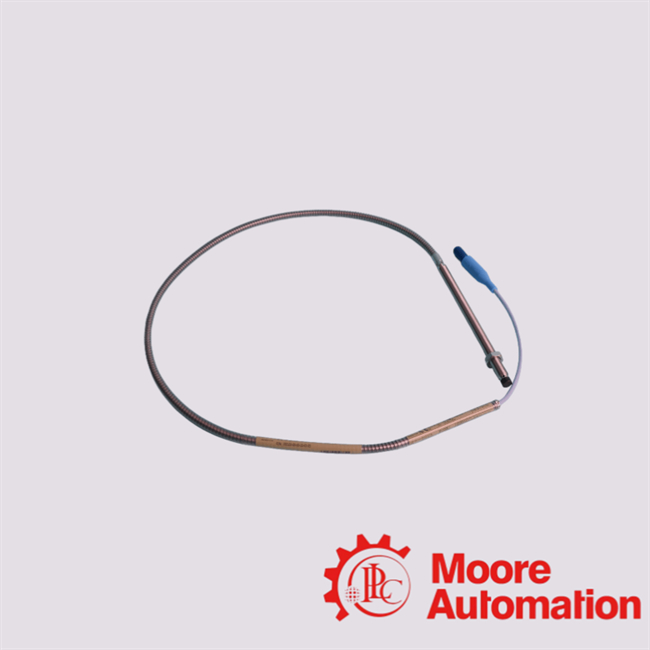

330102-00-64-10-02-00 Bently Nevada Proximitor Sensor
Description
The Bently Nevada 330102-00-64-10-02-00 is part of the 3300 XL 8 mm Proximity Transducer System, specifically the Proximitor® Sensor.
This sensor is integral to the system, converting the eddy current signal from the proximity probe into a proportional
voltage output, facilitating precise shaft displacement and vibration
measurements in industrial machinery.
330102-00-64-10-02-00 Details
|
FAQ
|
|
Q1: What does the part number 330102-00-64-10-02-00 signify?
330102: Model number for the 3300 XL 8 mm Probe.
00: Unthreaded length option ( 0.0 inches ).
64: Overall case length option (6.4 inches).
10: Total length option (10.0 meters).
02: Connector and cable-type option
(Miniature coaxial ClickLoc
connector, standard cable).
00: Agency approval option (Not
required).
Q2: Is the 3300 XL Proximitor® Sensor compatible with other Bently Nevada systems?
Yes, components of the 3300 XL 8 mm system are backward
compatible and interchangeable with other non-XL 3300
series 5 mm and 8 mm transducer
system components.
Q3: What are the power requirements for the Proximitor® Sensor?
The Proximitor® Sensor requires a -17.5 Vdc to -26 Vdc power
supply without barriers, consuming
a maximum of 12 mA.
Q4: What industries commonly use the 3300 XL Proximitor® Sensor?
Industries such as power generation, oil and gas, aerospace, and process
industries utilize this sensor for monitoring machinery
health and performance.
|
|
|
|
