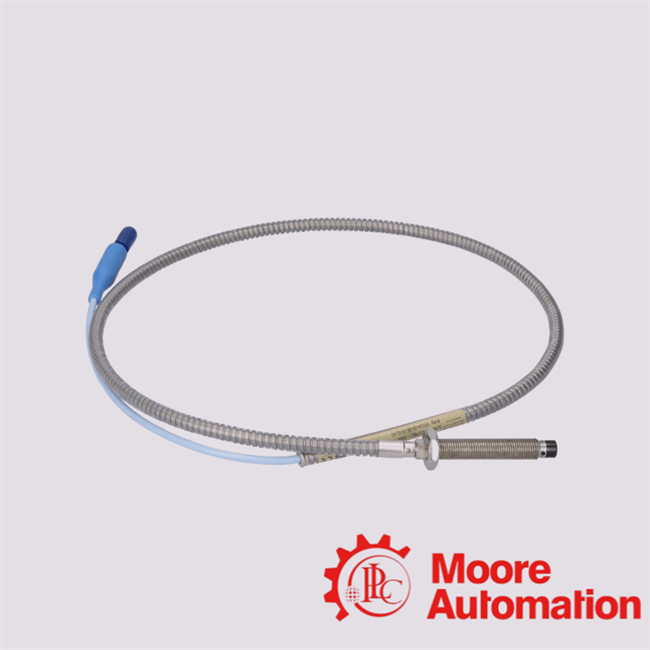

330104-00-06-10-01-00 Bently Nevada Proximity Transducer System
Description
The Bently Nevada 330104-00-06-10-01-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise, non-contact measurement
of shaft displacement and vibration in industrial machinery. This system is widely used in applications
such as vibration monitoring, shaft position measurement,
and Keyphasor® speed detection.
330104-00-06-10-01-00 Details
|
FAQ
|
|
Q1: What does the part number 330104-00-06-10-01-00 signify?
330104: Model number for the 3300 XL 8 mm Probe.
00: Unthreaded length option ( 0.0 inches ).
06: Overall case length option (6.0 inches).
10: Total length option (10.0 meters).
01: Connector and cable-type option
(Miniature coaxial ClickLoc
connector with connector
protector, standard cable).
00: Agency approval option
(Not required).
Q2: Is the 3300 XL 8 mm Proximity Transducer System compatible with other Bently Nevada systems?
Yes, components of the 3300 XL 8 mm system are backward compatible
and interchangeable with other non-XL 3300 series 5
mm and 8 mm transducer system
components.
Q3: What are the power requirements for the Proximitor® Sensor?
The Proximitor® Sensor requires a -17.5 Vdc to -26 Vdc power supply
without barriers, consuming a
maximum of 12 mA.
Q4: What industries commonly use the 3300 XL 8 mm Proximity Transducer System?
Industries such as power generation, oil and gas, aerospace, and process
industries utilize this system for monitoring
machinery health and performance.
|
|
|
|
Inquiry now: miya@mvme.cn
